Hub Motor Technology

Revolutionizing Electric Mobility

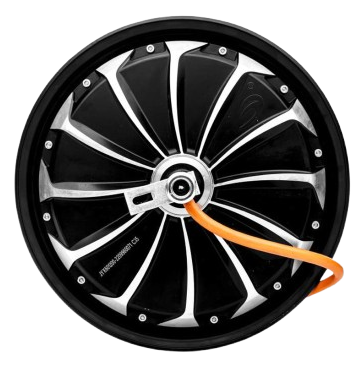

Upgrade your ride with our high-performance hub motors – the core driving force of modern electric scooters. Hub motors are built directly into the wheel, offering a compact, efficient, and low-maintenance solution for smooth and silent performance.

At Hub Motor, we offer a versatile range of 10” and 12” hub motors, with power options from 1000W to 3000W, designed to suit everything from light city rides to heavy-duty electric scooters. Whether you're aiming for better speed, load capacity, or long-term reliability, our motors deliver the power and durability your e-scooter needs.

Choose power. Choose performance. Choose Hub Motor.

  • Compact design for seamless integration
  • High efficiency with low maintenance
  • Smooth and silent performance

Our Products

Discover our range of high-performance hub motors designed for various applications and requirements.

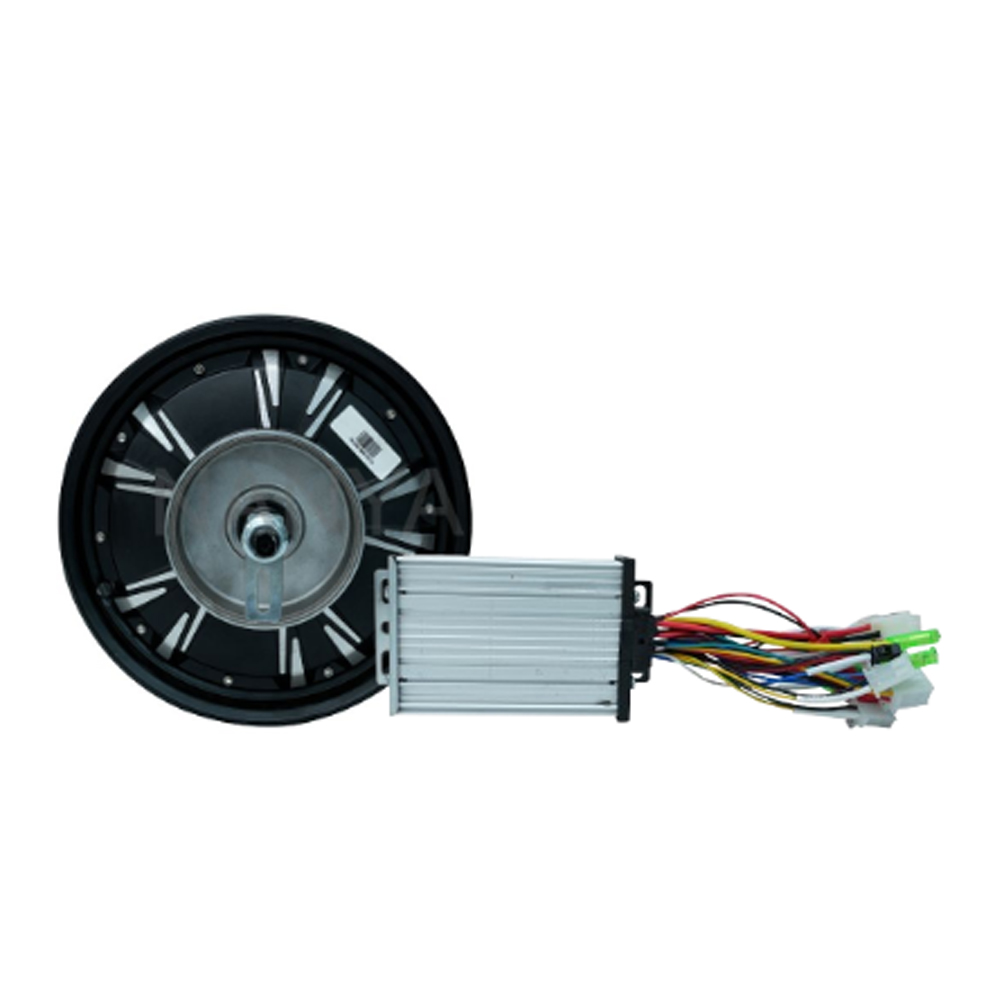

10 inch 1000W Motor

10" 1000W Hub Motor

48/60V

Speed: 55 km/h | Drum Brake

Rim Size: 10"
View Details

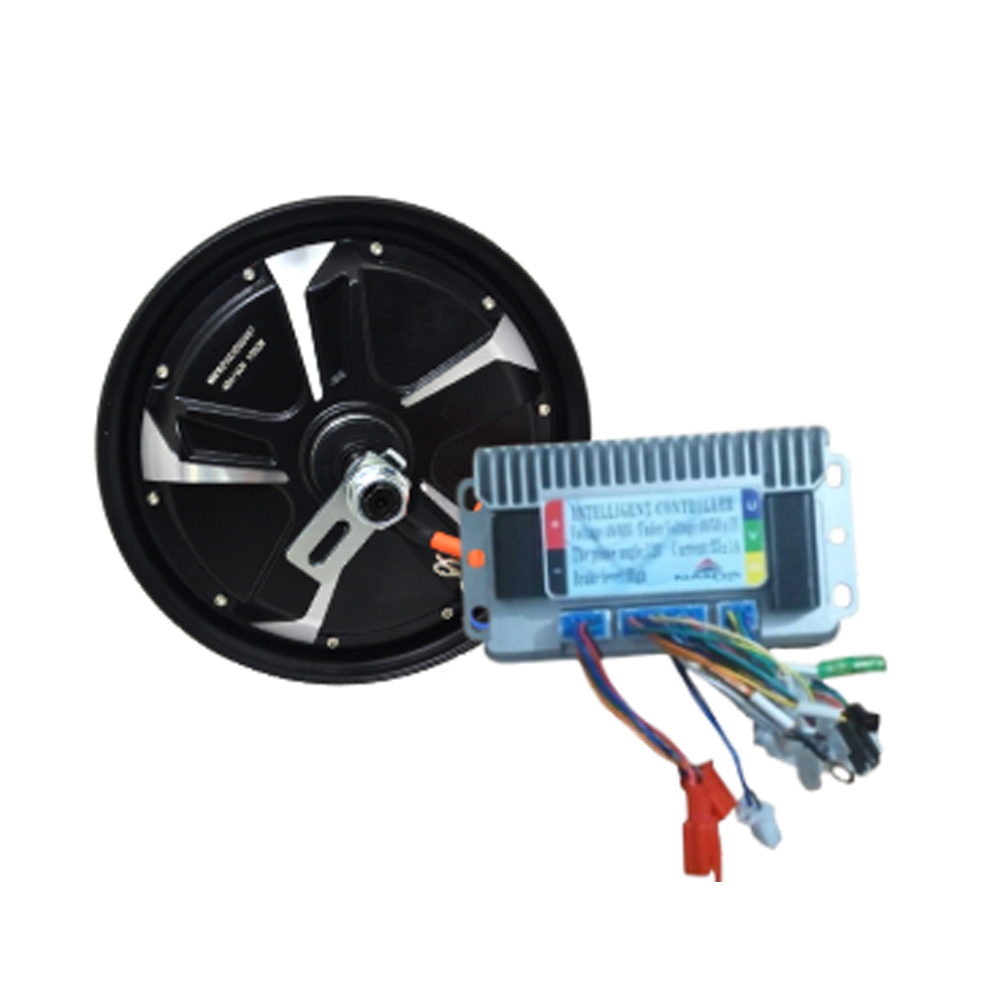

10 inch 1100W Motor

10" 1100W Hub Motor

48/60V

Speed: 55 km/h | Drum Brake

Rim Size: 10"
View Details

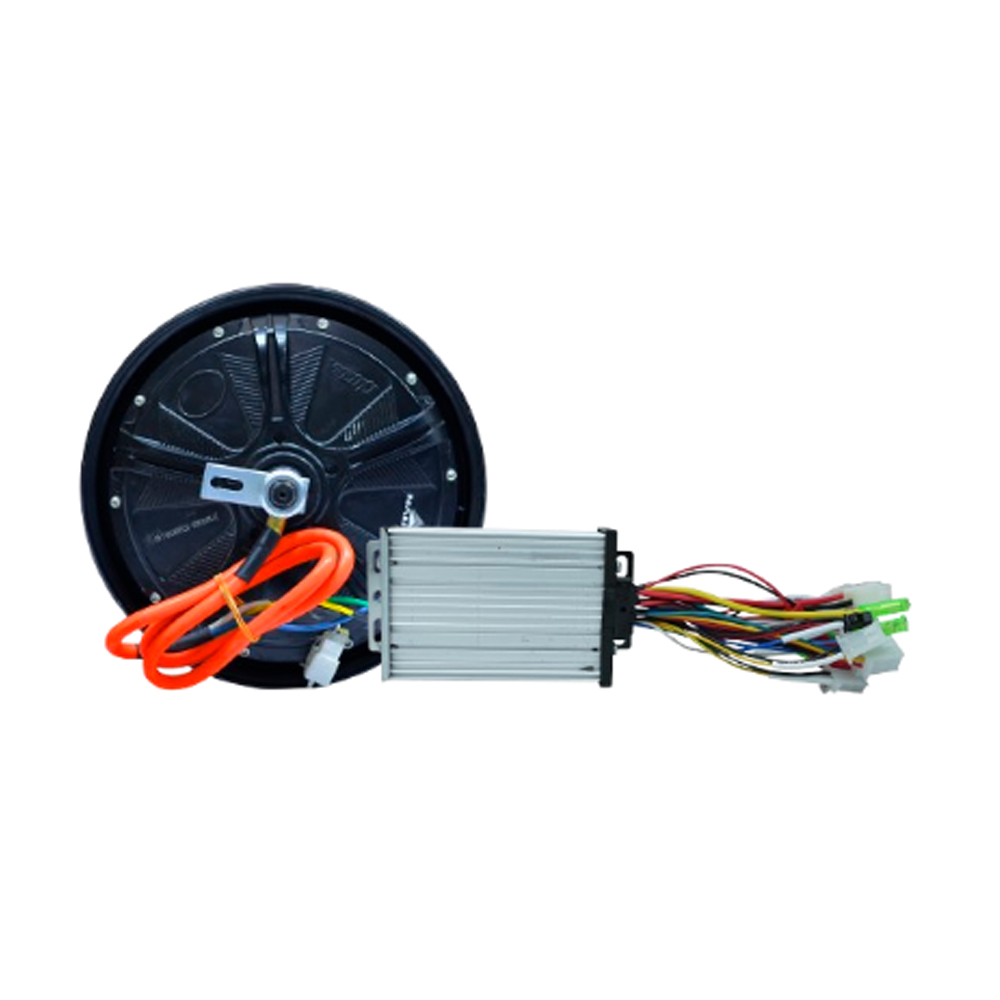

10 inch 1500W Motor

10" 1500W Hub Motor

60/72V

Speed: 55 km/h | Disc Brake

Rim Size: 10"
View Details

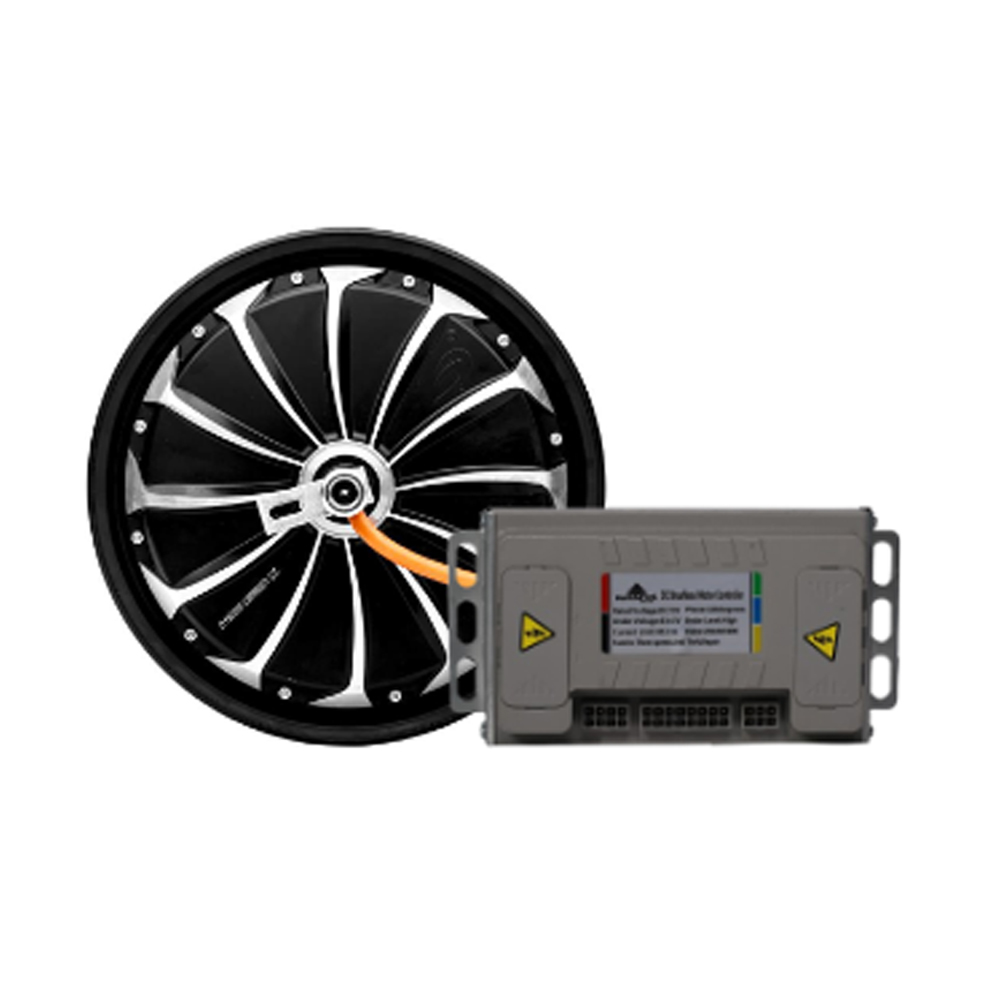

12 inch 1500W Motor

12" 1500W Hub Motor

60/72V

Speed: 60 km/h | Disc Brake

Rim Size: 12"
View Details

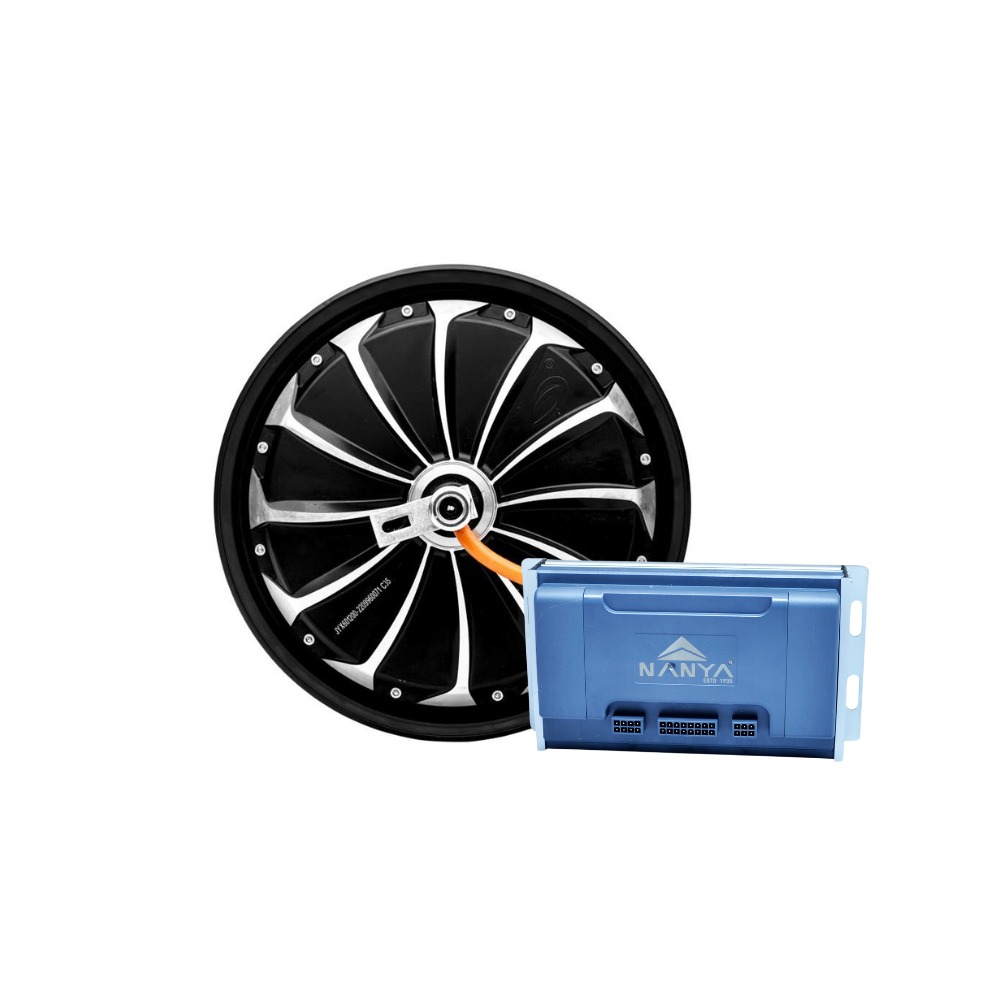

12 inch 2000W Motor

12" 2000W Hub Motor

60/72V

Speed: 70 km/h | Disc Brake

Rim Size: 12"
View Details

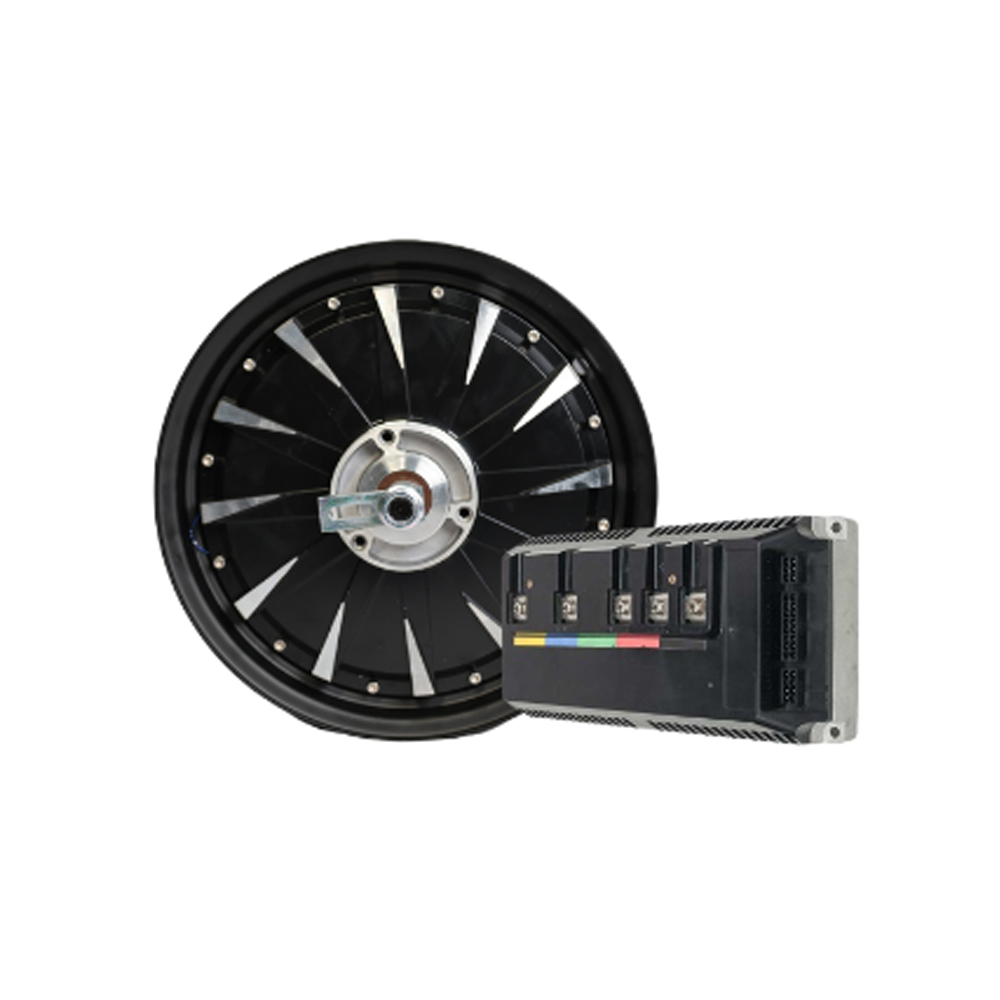

12 inch 3000W Motor

12" 3000W Hub Motor

72V

Speed: 80 km/h | Disc Brake

Rim Size: 12"
View Details

Key Features

High Efficiency

Superior energy conversion

High Torque

Up to 127.5 N.m power

Low Noise

As low as 56 dB

Hub Motor

Water Proof

IP67 rated protection

Long Life

Durable and reliable

High Speed

Up to 80 km/h

Technical Specifications

Precision-engineered for optimal performance and reliability

Technical Specifications

Specification HC-1010 HC-1011 HC-1015 HC-1215 HC-1220 HC-1230
Product 10" 1000W 10" 1100W 10" 1500W 12" 1500W 12" 2000W 12" 3000W
Wheel Size 10 inch 10 inch 10 inch 12 inch 12 inch 12 inch
Magnet Size - 40mm high 30mm high 35mm high 40mm high -
Volt 48V/60V 48V/60V 60V/72V 60V/72V 60V/72V 72V
RPM (60V) - 715 - 690 690 -
RPM (72V) - - - - - 925
Speed (60V) 55 km/h 55 km/h 55 km/h 60 km/h 60 km/h 80 km/h
Brake Type Drum Brake Drum Brake Disc Brake Disc Brake Disc Brake Disc Brake
Noise Level 58 dB 58 dB 58 dB 56 dB 56 dB 56 dB
Insulation B B B B B B
Torque - 107.7 N.m 93.7 N.m 118.1 N.m 127.5 N.m -
Mosfets 12 12 15 15 18 18
Current 32A 32A 35A 35A 40A 80A

Performance Metrics

127.5 N.m

Max Torque

80 km/h

Top Speed

56 dB

Min Noise

Compatibility

  • Compatible with 10" to 12" wheel sizes
  • Supports 48V, 60V, and 72V battery systems
  • Integrates with standard disc and drum brakes
  • Works with most e-bike and e-scooter controllers
